Integrated Self-Contained Water Circulation System
Features a built-in lower gutter that doubles as a dedicated water reservoir, completely
eliminating the need for an external ground-mounted water tank. The intermediate
floating make-up water tank, equipped with an internal float valve, enables fully automatic
water refilling based on real-time water consumption, ensuring uninterrupted, consistent
evaporative cooling performance with zero manual intervention.

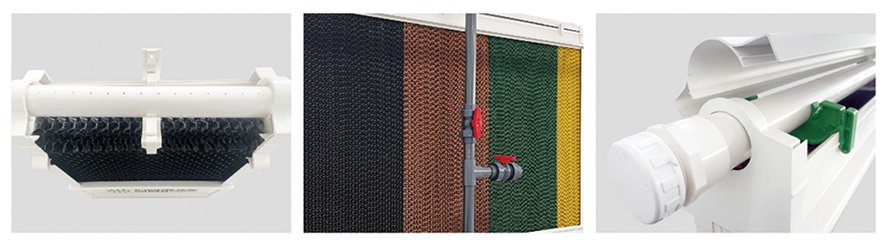

A Φ63 dedicated drip pipe with dripper holes spaced 3cm apart delivers uniform water
distribution across the entire length of the cooling pad, maximizing cooling efficiency and
eliminating dry spots.
Precision Flow Control & Anti-Leakage Design
Equipped with a Φ63 ball valve at the water inlet to regulate water flow, plus a T-type
ball valve for precise drainage control.
The newly developed detachable top anti-splash plate enables quick inspection and
cleaning of internal pipelines, while the cooling pad bracket features high splash
resistance on both sides to prevent water leakage and keep barn floors dry, reducing
humidity-related disease risks for livestock.
Tool-Free Modular Installation & Maintenance
Engineered with a fully modular design that allows full adjustment of length and
height to perfectly match the unique layout and ventilation requirements of any
pig barn, poultry house, or agricultural facility.

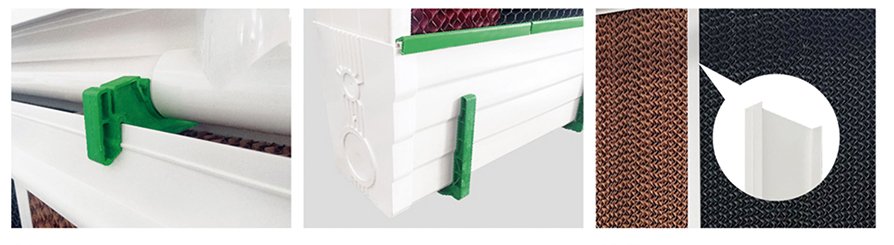

All profiles use snap fasteners for tool-free installation, with mounting brackets that
deliver high stability for M-plates and enable easy opening and replacement of cooling
pads, drastically reducing downtime for cleaning, maintenance, and pad replacement.
UV-Resistant PVC Construction & Reinforced Stability
Manufactured from high-grade UV-resistant PVC material, the frame delivers
exceptional longevity and complete rust immunity, outperforming traditional
metal frames in high-moisture, corrosive livestock barn environments.
The H-type cooling pad reinforcement plate stabilizes large-size cooling pads,
preventing deformation during long-term use and enhancing overall structural
stability, while the embedded bracket design prevents rodent gnawing damage
to extend the system's service life.
High-Efficiency Circulating System for Optimal Cooling

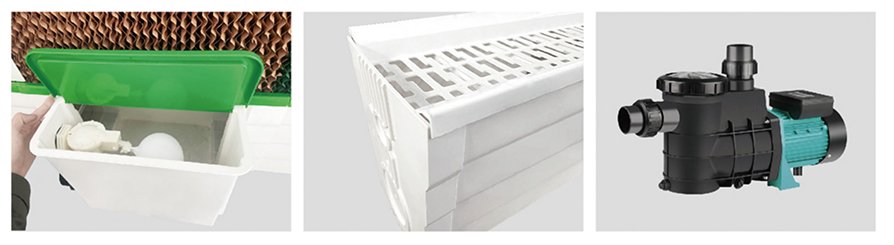

Paired with a circulating water pump equipped with an integrated filter, available in
1.5-inch and 2-inch calibers, with pump models configured to match different cooling
system lengths. The high-density evaporative cooling pad maximizes air-water contact
surface area, delivering powerful, energy-efficient temperature reduction while maintaining
optimal indoor humidity levels, creating a comfortable, low-stress environment that
supports optimal livestock growth, welfare, and productivity.
