Farmjoy PP Plastic Cooling PAD - Long-Life High-Efficiency Evaporative Cooling Solution for Livestock & Agricultural Facilities

Direct Drop-In Replacement for Paper Pads

Engineered as a direct replacement for standard paper cooling pads, with lower
pressure loss to reduce the energy load on barn ventilation systems. It features
quick, tool-free assembly, with high cooling performance that matches or
exceeds traditional paper pads, making it a cost-effective upgrade for existing cooling systems.

Robust Polypropylene Construction, Easy to Maintain

Manufactured from high-grade polypropylene (PP), the pad is extremely robust, non-
porous, and easy to clean and sanitize. Unlike cellulose paper pads, it resists degradation
from moisture, cleaning chemicals, and pest damage, maintaining consistent
performance year after year in harsh barn and outdoor environments.

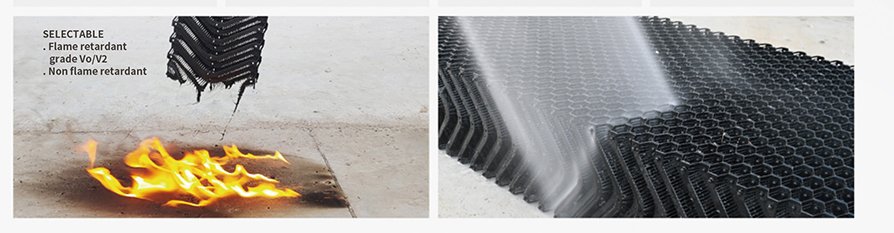

Flame Retardant Options for Safety Compliance

Offers selectable flame retardant grades (V0/V2) and non-flame retardant options to meet
different facility safety standards, ensuring compliance with commercial agricultural and
livestock building safety regulations.

Multiple Configurations & Customizable Sizing

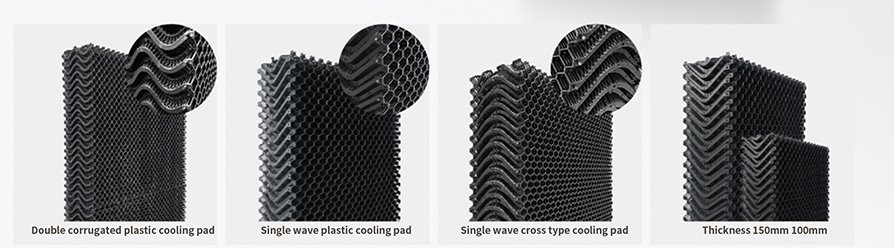

Available in 3 core structural designs to match diverse cooling needs:

Double corrugated plastic cooling pad

Single wave plastic cooling pad

Single wave cross type cooling pad

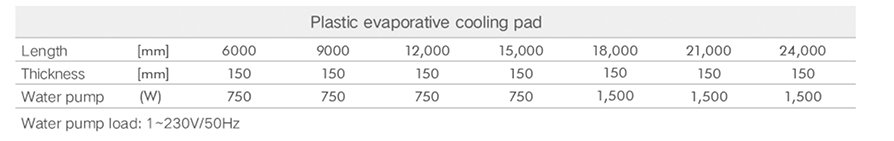

Standard thickness options: 100mm / 150mm. Standard dimensions include
600/900/1200/1500/1800/2100/2400 x 150mm/100mm, with custom heights up to 3000mm,
maximum length up to 24m per pump, and maximum height up to 2.5m.
Full custom sizing is available to match exact installation requirements.

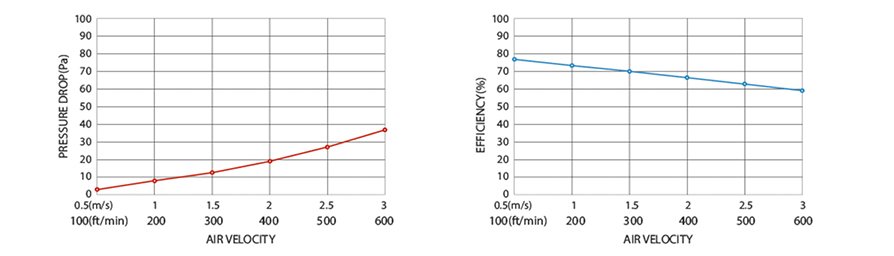

Verified High-Efficiency Cooling Performance

Lab and field tested to deliver consistent, reliable cooling performance:

Low pressure drop: gradual pressure increase with air speed, remaining under 40Pa
at 3m/s air velocity

High cooling efficiency: maintains over 58% saturation efficiency at 3m/s air speed,
starting at ~77% efficiency at 0.5m/s

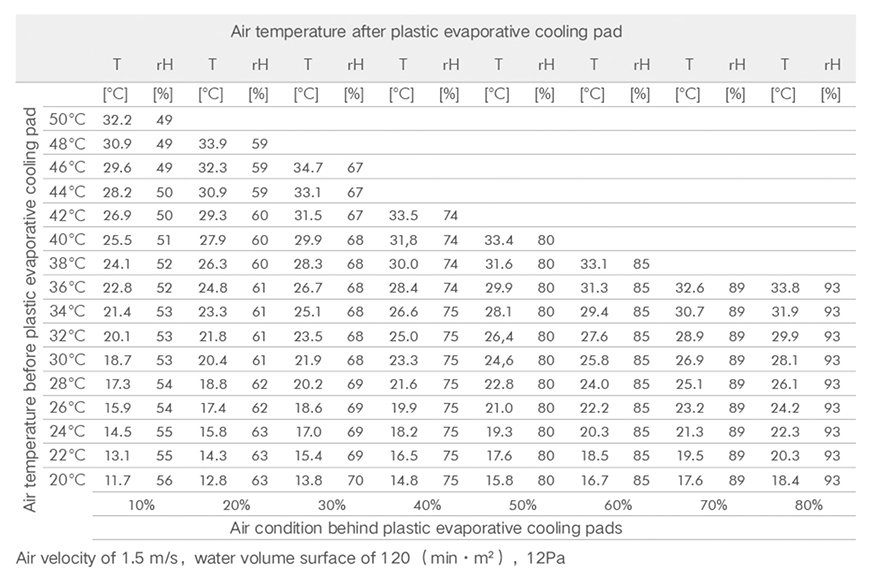

Effective temperature reduction: delivers significant cooling across all common inlet
air temperatures and humidity levels, creating a comfortable, low-stress environment
for livestock.

15+ Year Ultra-Long Lifespan, Zero Regular Replacement

Farmjoy PP Plastic Evaporative Cooling Pad is an advanced polypropylene-based cooling
solution that matches the cooling performance of traditional paper pads, with far superior
durability. Water-resistant, mold-proof, and insect-resistant, it delivers a 15+ year service
life with no regular replacement required, drastically reducing long-term material and labor
costs for commercial operations.
